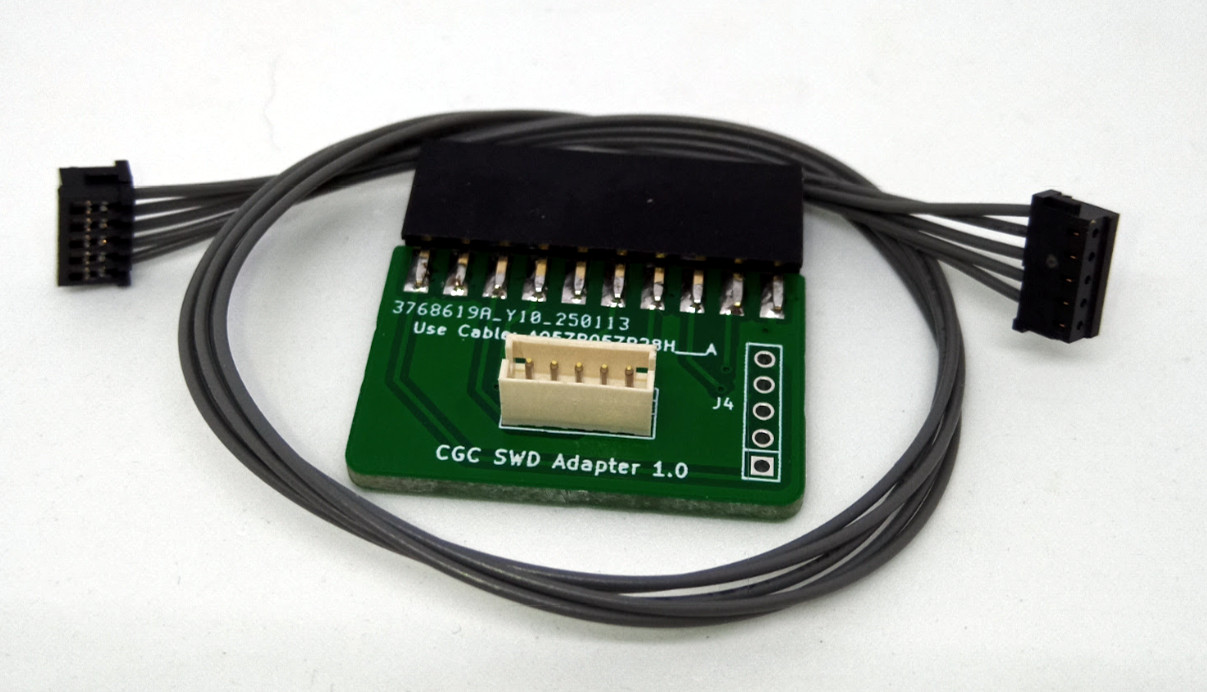

CGC JTAG 20 to SWD 5 Adaptor With 8″ Cable

$10.00

In stock

SKU: WTP250101 Categories: , ,

Description

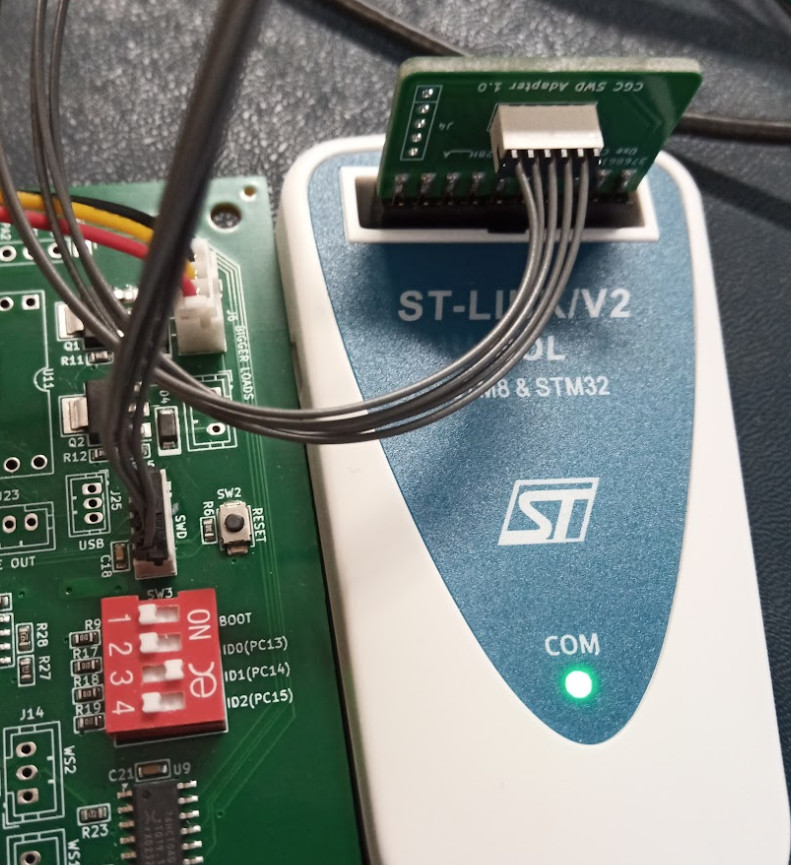

Use this adaptor to connect a programmer such as an ST-Link/V2 with 20 pin 0.1″ connector to an STM32 based board with 5 pin ZR/ZH connector.  Comes with an 8″ cable.

Pinout of the B5B-ZR connector:

Pin Function
1 GND
2 SWDIO
3 SWCLK
4 NRST
5 +3V3
